Surface Grinding Machine

BPH 1000 – 3000 kg

Surface Grinding Machine

BPH 1000 – 3000 kg

Working table length	1 000; 1 500; 2 000; 3 000	mm
Working table width	400; 500; 700; 800	mm
Maximum table load	600; 1 500; 2 000; 4 000	kg
Grinding wheel diameter	400×25/75×127	mm
Continuously adjustable grinding wheel peripheral speed	25 – 50	m/s
Grinding spindle motor power	11	Kw
Minimum programmable vertical feed increment (Y-axis)	0,001	mm
Minimum programmable transverse feed increment (Z-axis)	0,005 (0,001)	mm
CNC control system	TOS-Intronix



Download the product booklet

Unique grinder management system

Characteristics

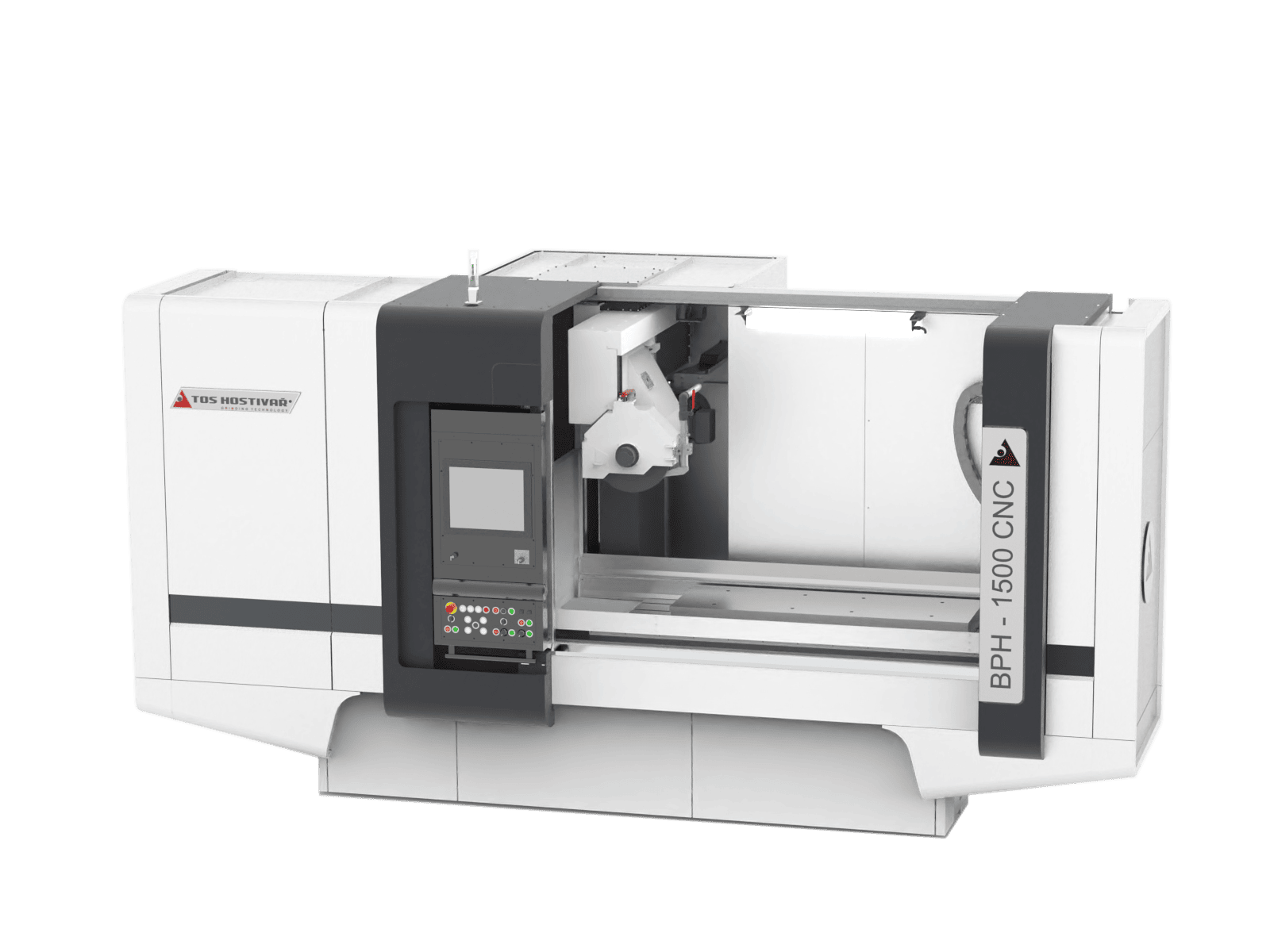

Single-column surface grinder with a horizontal grinding spindle located on the crosspiece – BPH CNC form the latest series of our production. The machines are intended for precise grinding of flat surfaces of workpieces by the periphery, or by the side of the grinding wheel. It also allows grinding of tapered surfaces at different angles with a longitudinal recess and, if the machine is equipped with a suitable dresser, also the grinding of shaped surfaces.. The machines are designed for precise and powerful grinding not only of individual pieces, but also for smaller series of workpieces.

Flexible grinding of workpieces up to 3000 mm long and weighing up to 4000 kg.
Compact construction, the main components of which are made of high-quality certified cast iron (2x annealed, with an emphasis on the removal of metallurgical stresses) guaranteeing rigidity, stability and precision during grinding.
Reduced energy consumption by up to 60%, thanks to the highly efficient table drive (belt drive from the servo motor through the gearbox and coupling), which, compared to the hydraulic drive, reduces the installed power needed to move the table.
Manual or automatic grinding.
Grinding flat surface, tapered and shaped surfaces.
TOS-Intronix CNC control system for controlled X, Y and Z axes
Unique SmarTOS+ system (I 4.0)
Full coverage with oil mist extraction.
Dynamic balancing of the grinding wheel.
Cooling and electrical systems from the world’s leading manufacturers.
Flexible adjustment of additional components.

I am interested

Photo gallery

Standard accessories

Full cover against coolant splash.
LED lighting of the work space with IP65 protection.
Grinding wheel dressing tool located on the edge of the clamping table.
Cooling emulsion tank.
Grinding wheel flange.
Grinding wheel flange puller.
Transport hinge of the grinding wheel flange.
Balancing mandrel and nut.
Anchoring material and height-adjustable pads.
Set of machine operating keys.
Technická dokumentace

Special accessories

Electromagnetic clamping plate
Equipment of cooling emulsion tank with optional filtration.
Extraction device for oil mist.
Additional grinding wheel flange.
Balancing stand
Automatic dynamic balancing of the grinding wheel with “spark” grinding monitoring.
